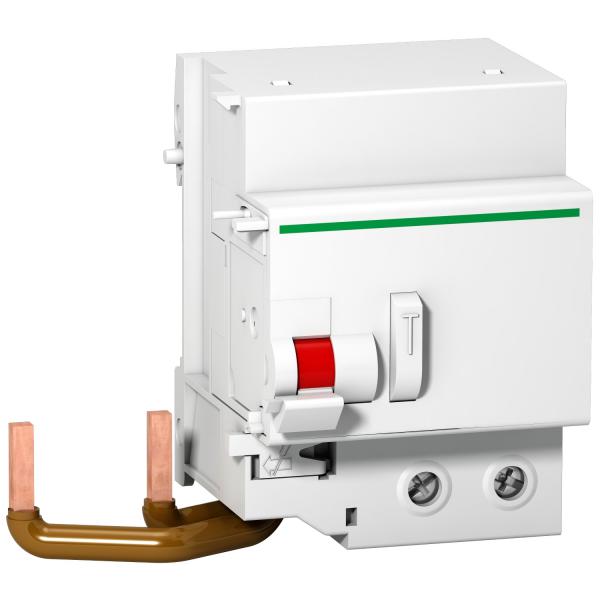

SCHNEIDER ELECTRIC Acti9 iC120 Vigi C120 - bloc différentiel - 2P - 300mA - type AC - instantané REF : A9N18564
Description
C120 - bloc différentiel - Vigi C120 - 2P - 125A - CA - 50/60 Hz - 230…415 V CA 50/60 Hz - 300mA - instantané...
Détails du produit : Acti9 iC120 Vigi C120 - bloc différentiel - 2P - 300mA - type AC - instantané
C120 - bloc différentiel - Vigi C120 - 2P - 125A - CA - 50/60 Hz - 230…415 V CA 50/60 Hz - 300mA - instantané - 500V CA 50/60 Hz conforme à IEC 60947-1 - 6kV - par vis - EN 61009 - 7 pas de 9 mm - IP20
Caractéristiques du produit : SCHNEIDER ELECTRIC | Réf : A9N18564
nombre de pôles | 2.0 |
---|---|
courant de défaut nominal ajustable | Non |
courant nominal | 125.0 A |
courant de défaut nominal | 0.3 | 0.3 A |
temps de retard max. | 0.0 ms |
tension d'isolement assignée (Ui) | 500.0 V |
temps de retard ajustable | Non |
tension assignée de tenue aux chocs (Uimp) | 6.0 kV |
type de courant différentiel | AC |
tenue au courant de choc | 0.25 kA |
fréquence | 50/60 Hz |
classe de protection (IP) | IP20 |
avec dispositif de verrouillage | Non |
indice de protection (IP) | IP20 |
tension nominale | 415.0 | 230.0 V |
température ambiante en fonctionnement | 5.0 | 60.0 °C |
degré de pollution | 3.0 |
section de raccordement cable souple | 35.0 | 1.0 mm² |
section de raccordement cable rigide | 50.0 | 1.0 mm² |
immunisé contre déclenchements intempestifs | Non |
tension nominale (Un) | 415.0 | 230.0 V |
